-5%

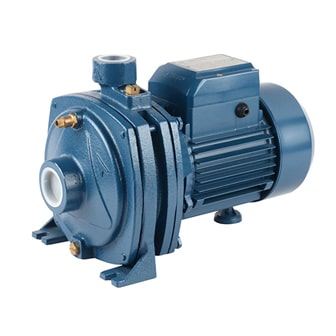

1.5HP MARQUIS 2-Stage Centrifugal Pump, 2MCP 25/140M
Original price was: ৳ 16,000.00.৳ 15,250.00Current price is: ৳ 15,250.00.
- Power: 1.50HP or 1.10KW
- Phase: ~1 or 220V
- Rated Speed: 2,900 rpm
- Head: 43-9 meters
- Water Flow: 10-110 LPM
- Suction Dia: 1.5-inch or 40mm
- Delivery Dia: 1-inch or 25mm
- Pump Body: Cast Iron with Electrophoretic Paint
- Impeller: Brass
- Number of Impellers: Two
- Shaft: Stainless Steel
- Mechanical Seal: Graphite-Ceramic, NBR
- Bearing: Z4 Class Bearing, NSK Brand
- Manometric Suction: 7m
23 in stock
Description
Limits of Use:
-Liquid Temperature: -10c to +60c
-Manometric Suction Lift: 7m
-pH Value of liquid: 6.5-8.5
-Power: 50Hz, Single phase 220v, up and down 10%
Features:
-Compact design with attractive appearance.
-Comparison with peripheral and JET pumps, the centrifugal pump has the highest efficiency.
-Due to adopting the cast
-Built-in thermal protector to prevent the motor from overheating.
Application:
-Be used to deliver clean water without abrasive particles.
-Be used to clean or cool the machine tools with high pressure.
-Be used to pump the water for house use, industrial use from the well or tank.
-Be used to boost the water in the pressurization system.
Components & Materials:
Pump body: Cast Iron
Impeller: Brass
Mechanical Seal: Graphite-Ceramic-NBR
Bearing: Z4 Class
Shaft: Stainless Steel
Insulation: Class B
Protection: IP44
Additional information
| Weight | 27.3 kg |
|---|---|
| Dimensions | 15 × 9 × 11.5 in |
| Color | Blue |
| Brand | Marquis |
