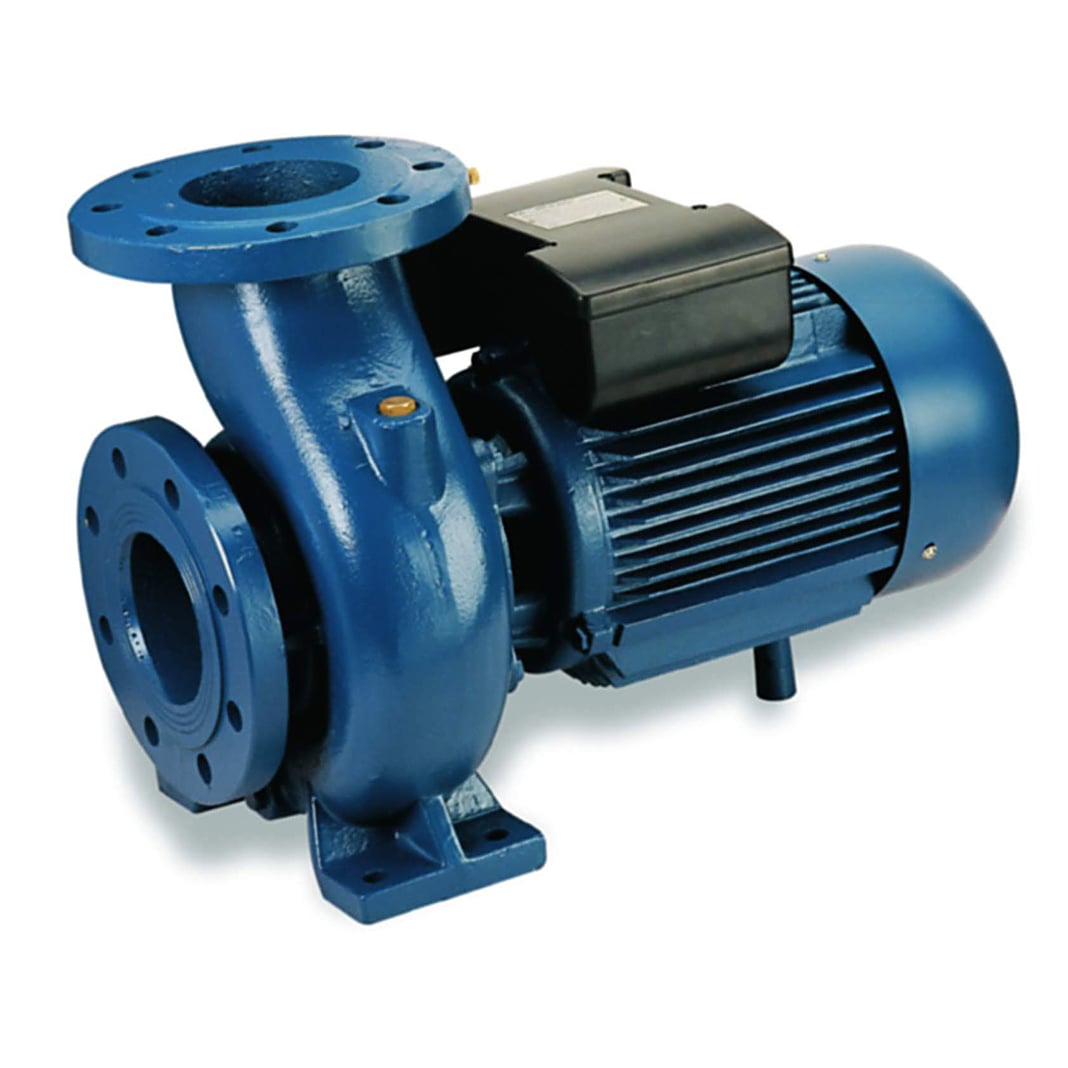

5HP MARQUIS Irrigation Centrifugal Pump, MHF/7AR (without Flange)

-5%
Marquis Centrifugal Pump, Marquis Irrigation Pump, mhf7ar

5HP MARQUIS Irrigation Centrifugal Pump, MHF/7AR (without Flange)

SKU: MHF/7AR Categories: , , , Tags: , , ,

Original price was: ৳ 37,500.00.Current price is: ৳ 35,700.00.

  • Power: 5HP or 3.75KW
  • Phase: ~1 or 220V
  • Water Flow: 250-2,000 LPM or 15-120 m³/hr
  • Head: 15-5 meters
  • Suction Dia: 4-inch
  • Delivery Dia: 4-inch
  • Manometric Suction: 7m
  • Speed Rate: 2,900 rpm
  • Impeller: Brass
  • Coil: 100% Cooper
  • Pump Body: Cast Iron
  • Shaft: Stainless Steel
  • Bearing: Z4 Class
  • Flange: Not Available

31 in stock

Add to Wishlist
Add to Wishlist

Description





Limits of Use:

-Liquid Temperature: -10c to +60c
-Manometric Suction Lift: 7m
-pH Value of liquid: 6.5-8.5
-Power: 50Hz, Single phase
Features:
-The special design on the impeller allows liquids containing relatively high levels of impurities to be pumped without the risk of the impeller clogging.
-The special design on the pump casing and impeller to assure relatively high flow.
-Wide range voltage of 180-240V is allowed for this pump, very suitable for use in irrigation.
Application:
-Be used to deliver the water in agriculture, garden, mining, etc.
-Be used to deliver the water from the canals, rivers, reservoirs for industrial use.
-Be used to deliver the water in the sewage treatment system.
Components & Materials:
Pump body: Cast Iron with Electrophoretic paint.
Impeller: Brass
Mechanical Seal: Graphite-Ceramic-NBR
Bearing: Z4 Class
Shaft: Stainless Steel

Additional information

Weight 85 kg
Dimensions 23.6 × 13 × 16.5 in
Color

Blue
Brand

Marquis
