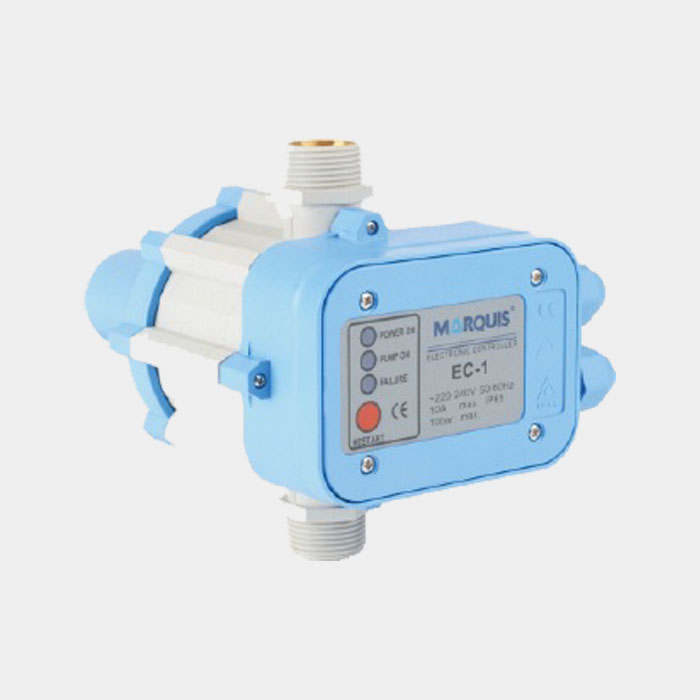

MARQUIS Automatic Electronic Pump Controller, EC-1

-6%
MARQUIS Automatic Electronic Pump Controller, EC-1

MARQUIS Automatic Electronic Pump Controller, EC-1

SKU: EC-1 Categories: , Tag: Brand:

Original price was: ৳ 3,200.00.Current price is: ৳ 3,000.00.

  • Power: 1.5HP or 1.1KW
  • Phase: ~1 or Single
  • Start-up Pressure: 1.5 Bar
  • Current: 10A
  • Protection Rating: IP65
  • Maximum Working Temperature: 60°C
  • Rated Voltage: 220V-240V
  • Freuency: 50Hz
  • Maximum Working Pressure: 10 Bar
  • Connection Thread: Inlet/Outlet Male Thread R1″
  • Water Housing: Reinforced Fresh Nylon
  • Sealing Membrane: Natural Rubber
  • Circuit Board: Industrial Level
  • Casing: Reinforced Engineering Plastic
  • Automatic ON/OFF: Available
  • Suction Diameter: 1-inch
  • Delivery Diameter: 1-inch

9 in stock

Description

The electromagnetic switch is an automatic pump control component installed at the discharge port and one of its two pipes is connected to the discharge port, while the other is connected to the discharge pipeline.

Additional information

Weight 1.5 kg
Dimensions 9 × 6.75 × 7 in
Color

Blue
Brand

Marquis
Power

1.5HP, 1.1KW
Phase

~1, Single
Start-up Pressure

1.5 Bar
Maximum Working Pressure

10 Bar
Current

10A
Protection Rating

IP65
Maximum Working Temperature

60°C
Rated Voltage

220V-240V
Freuency

50Hz
Connection Thread

Inlet/Outlet Male Thread R1"
Water Housing

Reinforced Fresh Nylon
Sealing

Membrane Natural Rubber
Circuit Board

Industrial Level
Circuit Board Casing/Panel

Reinforced Engineering Plastic
ON/OFF

Automatic
Suction Diameter

1-inch
Delivery Diameter

1-inch
